American Sign Language Hand

Functional Block Diagrams

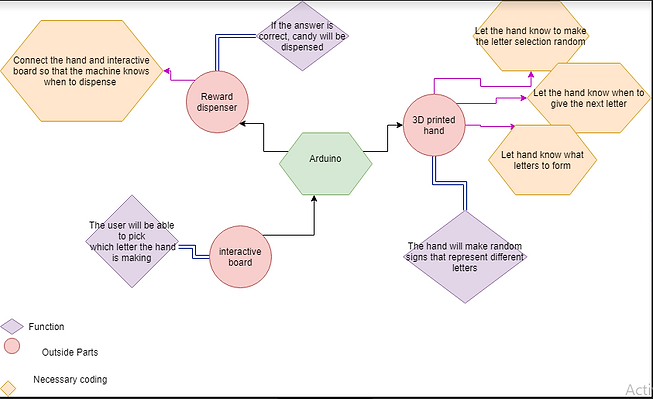

This diagram shows our thought process about how our toy would work and how all physical components would work together to make the toy.

Electrical Block Diagrams

This diagram shows the basic connections that are inside the box which helps the hand move.
The battery would power the breadboard which would be connected to the Arduino. The Arduino would then be connected to the hand, and the lights and the interactive board.

Software Block Diagram

This diagram shows the necessary basic codes used so the hand, the interactive board, and the lights would all be connected from the inside.
The hand movement would be made first and the person would have to choose what letter it is making. If the person gets the answer correctly a green light will turn on if the answer is wrong the red lights will turn on. The person will have to get it right before the next hand movement.
